51 31 242 Replacing rubber frame (bottom) for rear window

Special tools required:

51 0 300

Observe NOTES for securing components with adhesive tape.

Clean rear window (4) in area (3).

Pretreat adhesive area (3) of rubber frame (1) along the lower window edge and mark (2) with primer 205.

Wipe immediately with a clean cloth so as to retain primer transparency.

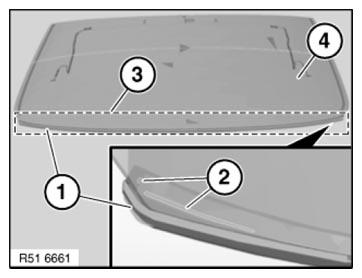

Fig 1: Identifying Rear Window, Adhesive Area, Rubber Frame And Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rubber frame (1) is positioned over center marks (2 and 3).

(2) Center mark on rear window
(3) Center mark on rear window

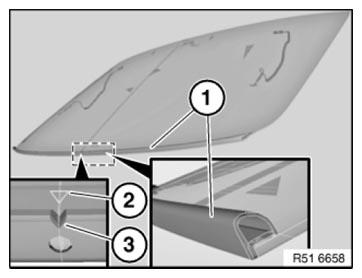

Fig 2: Identifying Rubber Frame And Center Marks On Rear Window
Courtesy of BMW OF NORTH AMERICA, INC.

Start bonding rubber frame (1) at center mark (2).

Pull off liner (5) approx. 100 mm and gently affix rubber frame (1).

Profile of lip (3) must rest correctly against edge (4) of rear window.

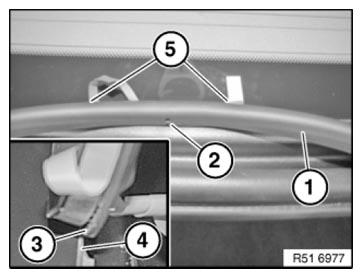

Fig 3: Identifying Rubber Frame, Center Mark, Liner, Lip And Rear Window Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Do not exert any elongation on the rubber frame when bonding.

Bond rubber frame over the full length and press down with special tool 51 0 300 .

IMPORTANT: In area (A) make sure that the rubber frame rests correctly and without bubbles on the rear window
Especially in the area of the end pieces, make sure there is a clean bonding.

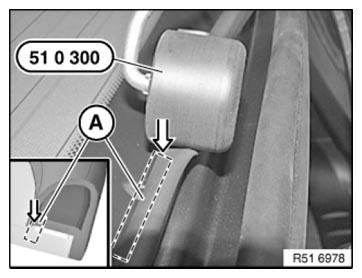

Fig 4: Pressing Down Using Special Tool (51 0 300)

Courtesy of BMW OF NORTH AMERICA, INC.

5131242 Replacing rubber frame (bottom) for rear window
