51 13 280 Removing and installing/replacing trim strip on roof frame at left or right

Special tools required:

Graphics are similar.

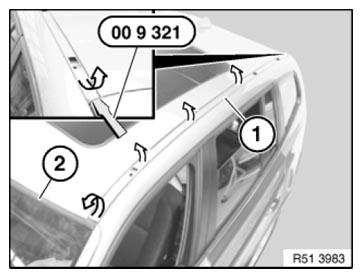

Lever out trim strip (1) with special tool 00 9 321 starting at the front.

Unclip trim strip (1) in direction of arrow.

Fig 1: Releasing Trim Strip Using Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

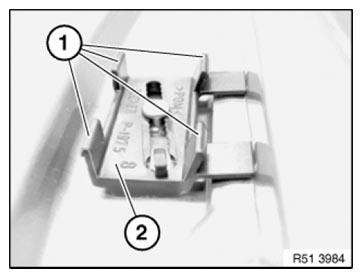

Installation note:

Catches (1) of clips (2) must not be damaged.

If necessary, replace clips (2).

Emergency strategy if T-bolt is broken:

Fig 2: Identifying Roof Strip Catches And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

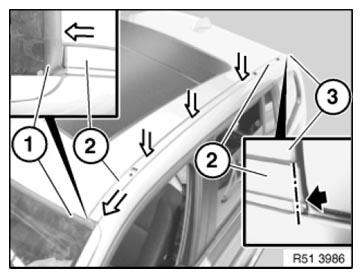

Installation note:

Place front trim strip (2) against seal (1).

Trim strip (2) must be flush with edge (3) at rear.

Clip trim strip (2) into place completely.

Fig 3: Locating Front Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

5113280 Removing and installing/replacing trim strip on roof frame at left or right
