51 47... Removing and installing/replacing left luggage compartment lid

Necessary preliminary tasks

• Remove warning triangle.

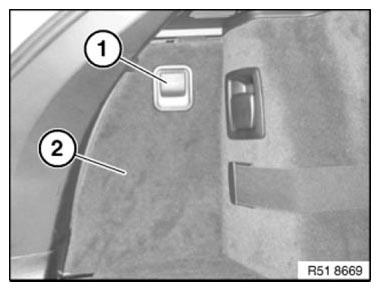

Lift handle (1) from socket mounting and fold luggage compartment lid (2) toward inside.

Fig 1: Identifying Luggage Compartment Lid And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

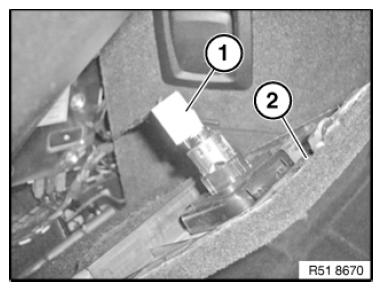

Disconnect plug connection (1) from socket.

Remove luggage compartment lid (2).

Replacement

Modify socket mounting.

Fig 2: Identifying Luggage Compartment Lid And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
