51 47... Removing and installing/replacing damper for screen

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

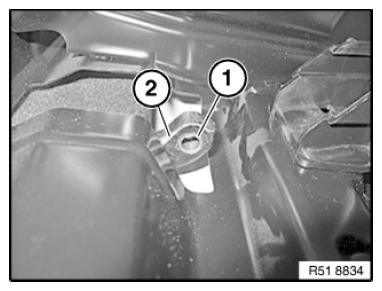

Release circlip (2) and remove pin (3).

Fig 1: Identifying Ball Socket, Circlip And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Feed damper (1) towards front/top.

Fig 2: Feeding Damper Towards Front/Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bush (1) of lever for screen (2) must not be damaged and must be installed.

Fig 3: Identifying Lever Bush And Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Assemble individual parts of damper unit according to illustration.

Install slide housing from damper unit (1) on screen frame.

Fig 4: Assembling Damper Unit Parts

Courtesy of BMW OF NORTH AMERICA, INC.
