51 47... Removing and installing/replacing cover partition wall fixture

Necessary preliminary tasks

• Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

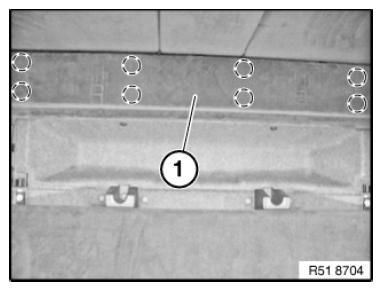

Unclip cover for partition wall fixture (1) at marked locations and remove cover.

Fig 1: Identifying Lever Bush And Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty clips (1)

Klipp (1) = yellow

Replacement

Modify clips (1).

Fig 2: Assembling Damper Unit Parts

Courtesy of BMW OF NORTH AMERICA, INC.
