51 47... Removing and installing/replacing cargo cover (middle)

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks

• Remove SCREEN  (unit).
• Remove CARGO COVER, LEFT AND RIGHT .
• Remove CARGO COVER DAMPING UNIT  (middle).

Lever guide bush (1) on left and right out of cargo cover (middle).

Installation note:

Replace guide bush (1).

Fig 1: Identifying Cargo Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

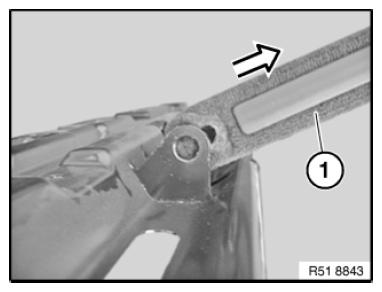

Pull out cargo cover (1) in direction of arrow.

Fig 2: Removing Cargo Cover Trim

Courtesy of BMW OF NORTH AMERICA, INC.
