13 71 174 Removing both air ducts (S63 B44 T 0)

Necessary preliminary tasks:

• Remove left CHARGE AIR COOLER .
• Remove right INTERCOOLER .
• Remove COOLANT FEED AND RETURN PIPES .

Release clamps (1).

Replace clamps.

Release screw (2).

Tightening torque 13 71 5AZ .

Detach right air duct (3) from exhaust turbocharger and remove.

Detach left air duct (4) from exhaust turbocharger and remove.

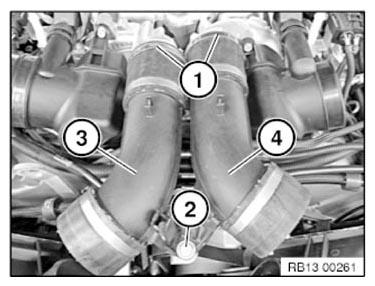

Fig 1: Identifying Exhaust Turbocharger Air Duct Clamp And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
