13..... Removing intake duct (N55)

Necessary preliminary work:

• Remove left TRAILING LINKS

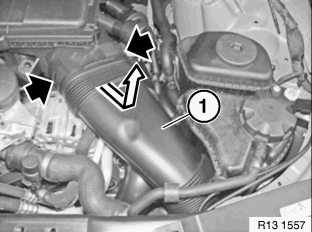

Press in catches on intake silencer housing.

Feed out intake duct (1) towards top.

Fig 1: Feed Out Duct Toward Top

Courtesy of BMW OF NORTH AMERICA, INC.

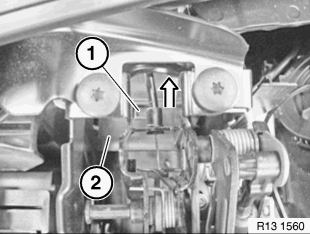

ess in catch (1).

Detach intake duct (2) towards rear and remove.

Fig 2: Detach Intake Duct Toward Rear

Courtesy of BMW OF NORTH AMERICA, INC.
