22 11 100 Replacing right engine support arm (N63)

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION .
Remove rear UNDERBODY PROTECTION .
Lower FRONT AXLE SUPPORT (right-hand drive models only)

Release screw (1).

IMPORTANT: Installation note:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ .

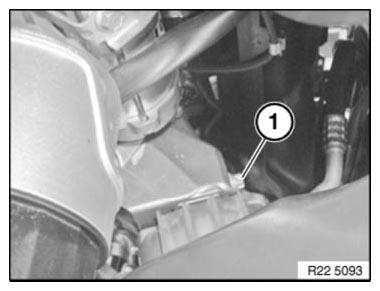

Fig 1: Identifying Right Engine Support Arm (N63) Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

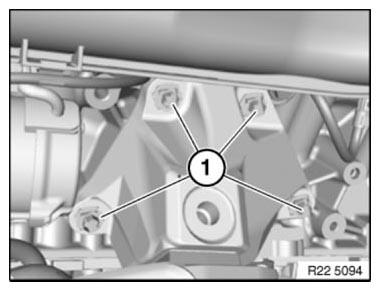

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
