51 23 101 Removing and installing/replacing left active engine compartment lid lock

Necessary preliminary tasks:

NOTE: Graphic for example purposes only (originates from F01).

Remove all screws (1) at join (2) from engine compartment lid door lock to center of vehicle; slacken remaining screws (1).

Tightening torque 51 61 6AZ .

NOTE: Connection (2) does not have to be removed.

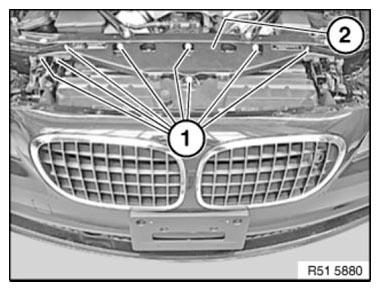

Fig 1: Identifying Engine Compartment Lid And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on engine compartment lid lock (1).

Tightening torque 51 23 2AZ .

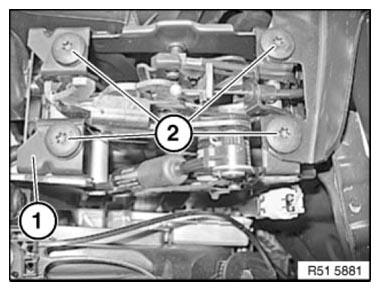

Fig 2: Identifying Engine Compartment Lid Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Disengage, unlock and disconnect plug connections (1) at lock carrier.

Disconnect Bowden cable (2).

Feed out engine compartment lid lock (3) upwards to the front.

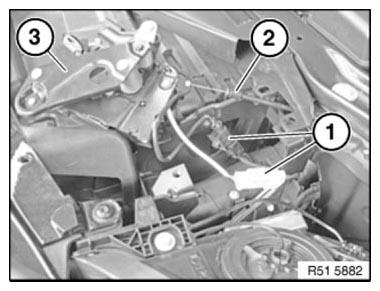

Fig 3: Identifying Engine Compartment Lid Lock And Bowden Cable
