84 50 060 Removing and installing or replacing Bluetooth aerial

Necessary preliminary tasks

Version A:

Disconnect plug connection (1) and unclip aerial (3) from mountings (2).

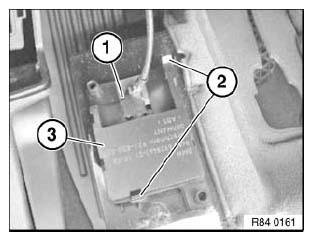

Fig 1: Identifying Plug Connection And Bluetooth Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Disconnect associated plug connection.

Release retaining clips (1).

Installation:

Do not damage pedal assembly panelling in working area.

Replace damaged retaining clips.

Remove Bluetooth aerial (2).

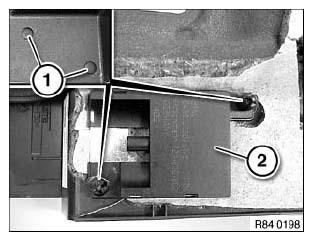

Fig 2: Identifying Retaining Clips And Bluetooth Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
