00 11 229 Oil change in manual transmission

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330i, 2005 BMW 330Ci, 2004 BMW 330i, and 2004 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearbox must be at normal operating temperature.
Gear oil:

refer to OPERATING FLUIDS - MAINTENANCE & GENERAL INFORMATION for BMW Service Operating Fluids.

Filling capacities:

Refer to TECHNICAL DATA .

Draining gear oil:

Release oil drain plug (1) and filler plug (2).
Clean oil drain plug (1) and screw in.
Tightening torque, 23 00 4AZ. See 23 00 TRANSMISSION IN GENERAL

Fill transmission with gear oil.

Pour in gear oil until overflowing.
Screw in filler plug (2).

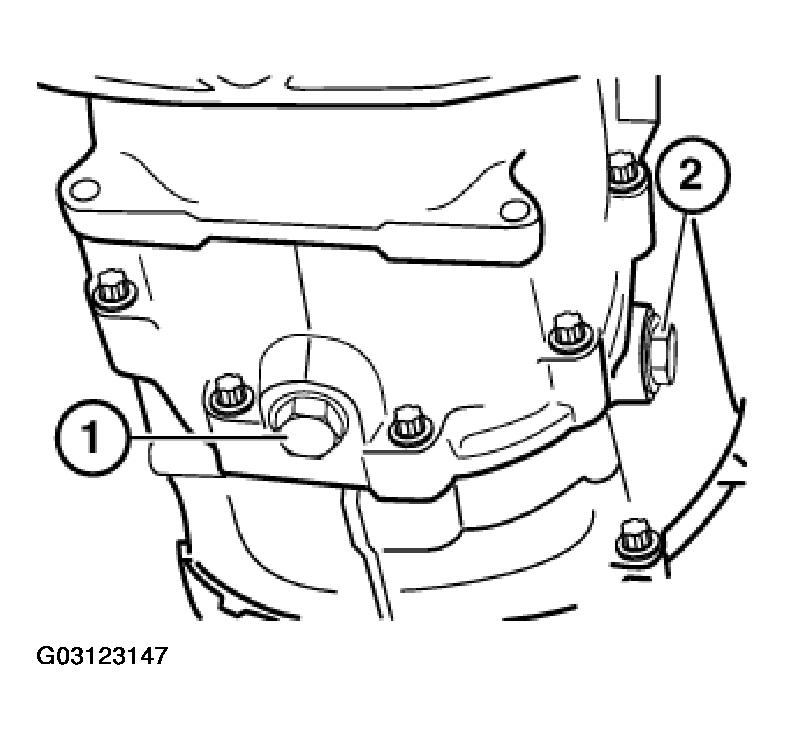

Fig 1: Releasing Oil Drain Plug & Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.
