22 11 110 Replacing left engine support arm (N55 hybrid)

WARNING: Compliance with the following points is mandatory before beginning work:

Necessary preliminary tasks:

Release high-voltage cable (1) from electrical vacuum pump.

Release fuel line from holder (3).

Release oil condition sensor line (2) from holder of electrical vacuum pump.

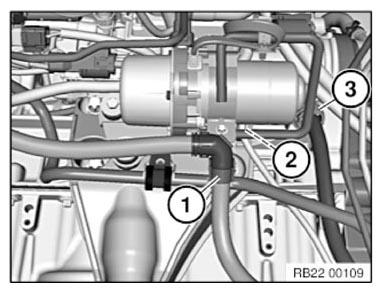

Fig 1: Identifying High-Voltage Cable, Holder And Oil Condition Sensor Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release vacuum line (2) from vacuum pump.

Disconnect plug (3).

Release screws (1).

Tightening torque 22 11 7AZ .

Remove electrical vacuum pump.

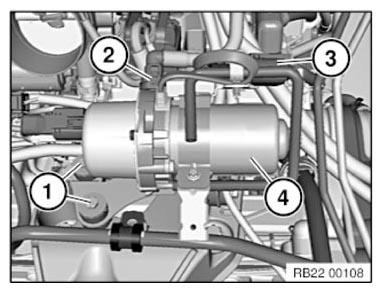

Fig 2: Identifying Screws, Vacuum Line And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (4).

Tightening torque 22 11 2AZ .

Release screw (3).

Tightening torque 22 11 6AZ .

Release screw (1).

Tightening torque 22 11 3AZ .

Remove engine support arm (5).

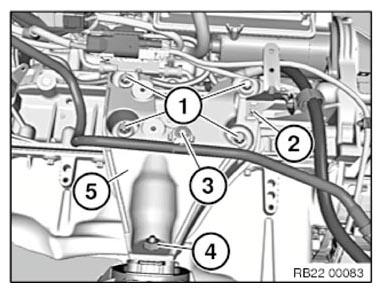

Fig 3: Identifying Nut, Screw And Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.
