32 31 070 Removing and installing/replacing lower section of steering spindle
Necessary preliminary tasks
N52K engine:
- Remove INTAKE FILTER HOUSING
IMPORTANT:
If the lower section of the steering spindle is separated from the steering gear/steering column, the steering-column switch cluster may be damaged when the steering wheel is turned.

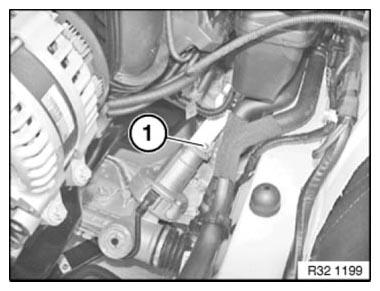

Release clamping screw (1).
Return steering to straight-ahead drive setting and remove ignition key.
Detach lower section of steering spindle from steering gear.
Installation:
Clean thread to remove all remnants of screw securing adhesive.
Replace clamping screw.
Lower section of steering spindle can only be attached in one position to the steering gear.
Tightening torque 32 31 1AZ .

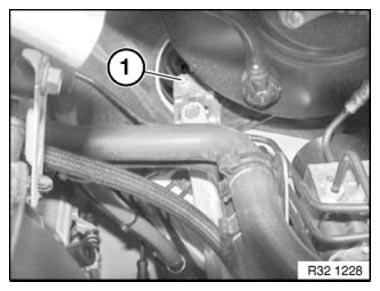

Release clamping screw (1).
Detach steering spindle upper section from steering column.
Installation:
Clean thread to remove all remnants of screw securing adhesive.
Replace clamping screw.
Clamping screw must rest in groove of steering column.
Tightening torque 32 31 2AZ .
After installation
- Turn steering wheel in both directions to full lock. The airbag warning lamp must not light up in the process.
- Carry out STEERING ANGLE SENSOR ADJUSTMENT
- Check directional stability of car
