51 41 000 Removing and installing left or right front door trim panel

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Open side window completely.
• Switch off ignition before disconnecting plug connections

Lever out plug (1) with a suitable tool and release screw underneath.

Tightening torque 51 41 1AZ .

Unfasten screws (2).

Tightening torque 51 41 1AZ .

Release screw (3).

Tightening torque 51 41 1AZ .

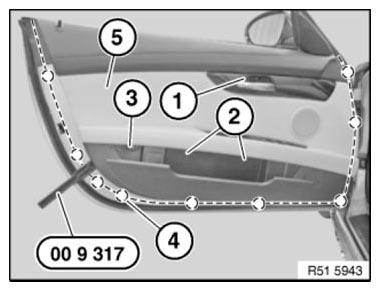

Unclip the door trim panel (5) with special tool 00 9 317 at clips (4).

Installation note:

Replace self-locking screw.

Fig 1: Removing Door Trim Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that the clips are correctly fitted.

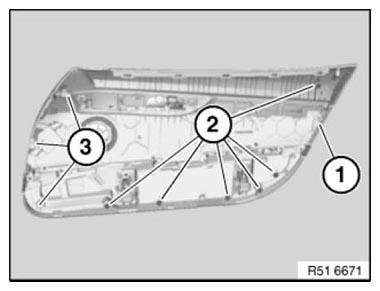

1. Blue clips
2. White clips
3. Yellow clips

Installation note:

Always replace blue clip (1) (clip with sealing ring)

If necessary, replace further faulty clips.

Fig 2: Identifying Blue, Yellow And White Clips

Courtesy of BMW OF NORTH AMERICA, INC.

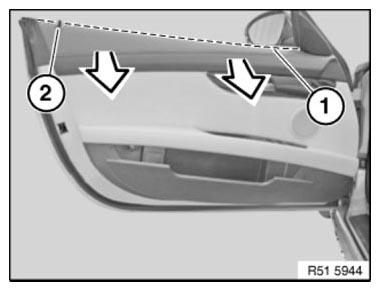

Unclip door trim panel (1) at top.

Feed out door trim panel (1) from release button (2).

Installation note:

If necessary, replace defective retaining elements.

Fig 3: Removing Door Trim From Unlocking Button

Courtesy of BMW OF NORTH AMERICA, INC.

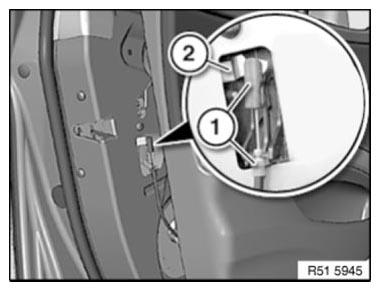

Unhook Bowden cable (1) from door lock (2).

Fig 4: Identifying Bowden Cable Of Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on equipment specification:

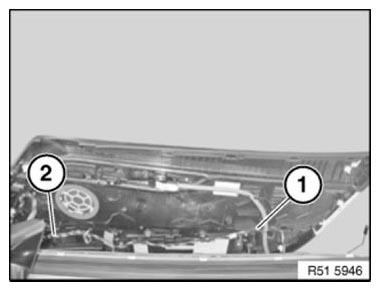

Disconnect plug connection (1).

Remove cable (2) with retaining clips.

Fig 5: Identifying Plug Connection And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carry out following function checks with door opened:

• Close rotary striker lock with a suitable tool. Check freedom of movement of locking button and linkage by actuating the locking system several times on the ignition key.

  If necessary, align linkage and repeat test procedure.

• Open rotary striker lock above inside door handle. Check correct opening by means of visual inspection.
