51 76 040 Removing and installing/replacing window frame seal

Necessary preliminary tasks

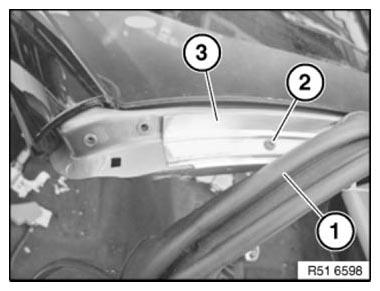

Release screws (1) on windscreen frame seal (2).

Fig 1: Releasing Screws On Windscreen Frame Seal

Courtesy of BMW OF NORTH AMERICA, INC.

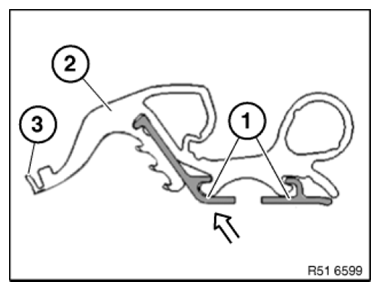

IMPORTANT: Seal (1) features an aluminum strip (3).

Carefully wind out seal (1) (windscreen breakage).

Release all screws (2) on windscreen frame strip (3).

Fig 2: Identifying Seal And Screws On Windscreen Frame Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

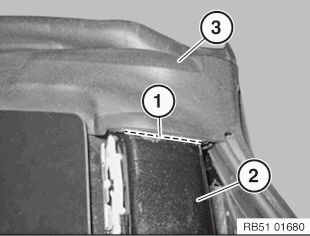

To ensure leak tightness, a butyl rope must be inserted in marked area (1) between A-pillar (2) and windscreen frame sealing (3).

Butyl rope:

Length = 40 mm

Dia. = 4 mm

Fig 3: Inserting Butyl Rope

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

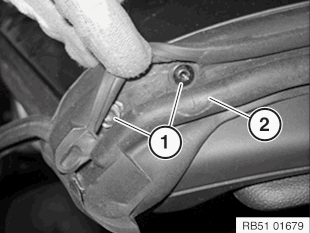

Insert windscreen frame strip (1) over entire length into

A-pillar seal (2).

NOTE: Tear-off lip (3) can be stuck on adhesive.

When seal (2) is removed, tear-off lip (3) can tear off and remain in vehicle.

Fig 4: Inserting Windscreen Frame Strip Over Entire Length

Courtesy of BMW OF NORTH AMERICA, INC.

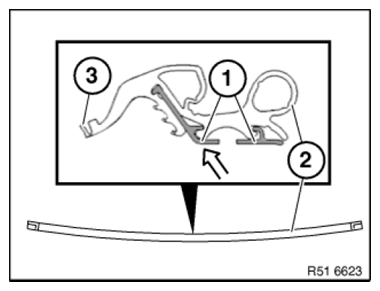

Replacement of seal without windscreen removal

Detach tear-off lip (3) from seal (2).

If adhesive leaks over tear-off lip (3), this area must be cut out partially.

To facilitate installation, coat seal (2) and body aperture with water.

Pay attention to center marking when installing seal (2).

1 Aluminum strip

Fig 5: Inserting Windscreen Frame Strip Over Entire Length

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of seal frame with removed or new windscreen

Pay attention to center marking when installing seal (2) with tear-off lip (3).

1 Aluminum strip

Fig 6: Inserting Windscreen Frame Strip Over Entire Length

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary adjust adjustment of windscreen frame seal to roof shell seal.

For necessary operations, refer to:
