51 23 100 Removing and installing/replacing right engine hood/bonnet lock

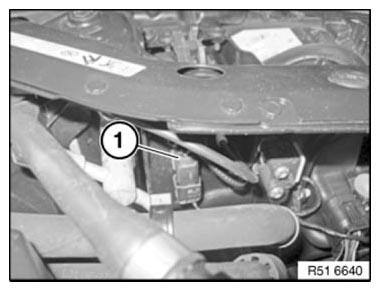

Disconnect plug connection (1) from microswitch.

Fig 1: Identifying Microswitch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and feed out engine compartment lid lock (2) including plug and wiring harness for microswitch towards top.

Tightening torque 51 23 2AZ .

Fig 2: Identifying Engine Compartment Lid Lock With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) in direction of arrow from engine compartment lid lock (2).

Fig 3: Identifying Engine Compartment Lid Lock With Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
