51 11 050 Removing and installing/replacing carrier for front bumper trim

Necessary preliminary tasks

• Remove front BUMPER TRIM

Remove shock absorber (1).

Fig 1: Identifying Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on left/right.

Tightening torque 51 11 5AZ .

Remove carrier (3).

Installation:

Insert spacer element (2) in bumper carrier on left side of vehicle.

Guide screws through spacer element (2).

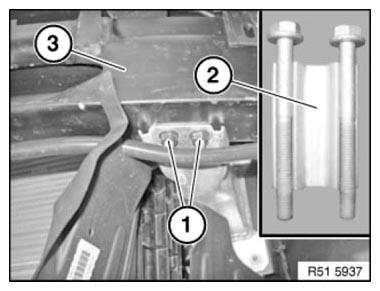

Fig 2: Identifying Spacer Elements With Nuts And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
