51 12... Overview of rear bumper

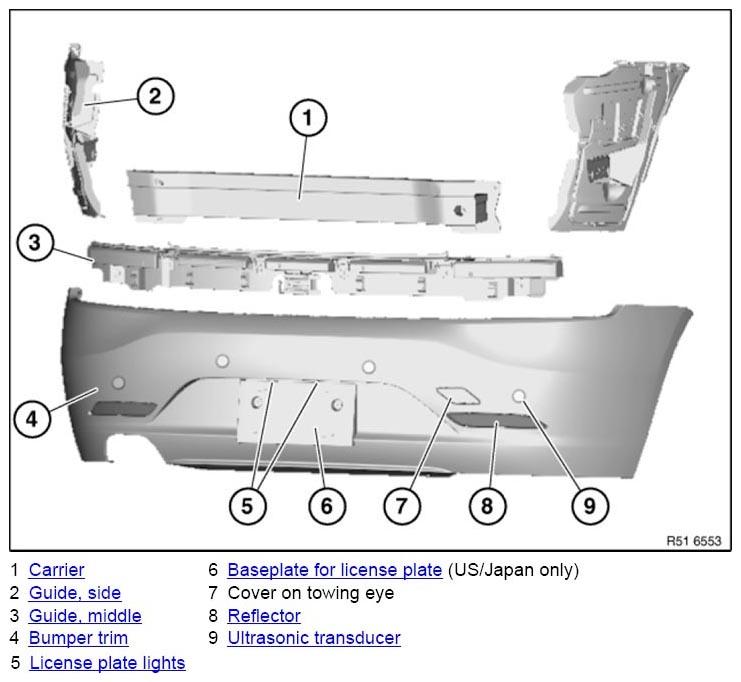

Fig 1: Overview Of Rear Bumper

G06911543

Courtesy of BMW OF NORTH AMERICA, INC.
