31 33 095 Measuring ride-level height of vehicle

Necessary preliminary tasks:

• Move vehicle into NORMAL POSITION .

Determine actual ride height (A) - to do so, attach tape measure to rim flange (2) at bottom middle and measure to lower edge of wheel arch (1).

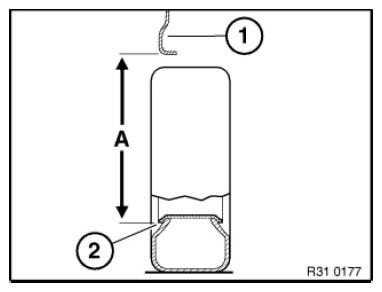

Fig 1: Identifying Wheel Arch Lower Edge Height

Courtesy of BMW OF NORTH AMERICA, INC.
