61 31 117 Removing and installing/replacing power window switch (driver's side)

Special tools required:

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

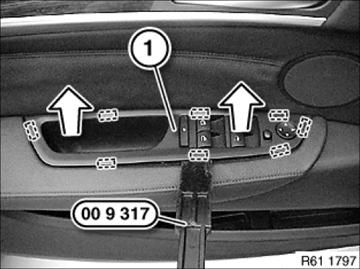

Fig 1: Removing Power Window Switch From Armrest Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure power window switch (1) is correctly engaged in armrest.

Disconnect plug connection (1) and remove power window switch.

Installation note:

Make sure clamps (2) are correctly seated on power window switch.

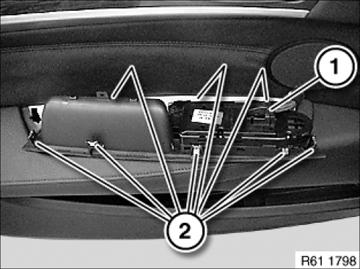

Fig 2: Identifying Power Window Switch Plug Connection And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
