61 31 084 Removing and installing/replacing switch for automatic rear lid actuation

Special tools required:

• 64 1 020

Lever switch for automatic rear lid actuation (1) with special tool 64 1 020 sideways out of frame (2).

Disconnect associated plug connection and remove switch for automatic rear lid actuation (1).

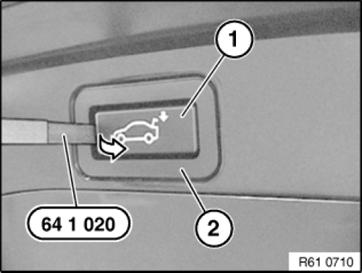

Fig 1: Removing Automatic Rear Lid Actuation Switch Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.
