51 13 116 Removing and installing/replacing cowl panel cover
Necessary preliminary tasks:
- Remove both WINDSCREEN WIPER ARMS .
- Remove both microfilter housing covers . See 64 31 101 REMOVING AND INSTALLING/REPLACING LEFT MICROFILTER HOUSING COVER or 64 31 106 REMOVING AND INSTALLING/REPLACING RIGHT MICROFILTER HOUSING COVER .

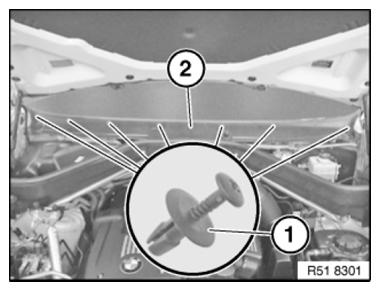

Release clips (1).
Feed out cover (2) towards top.
Installation:
If necessary, replace faulty clips (1) and associated grommets in body.
Installation:

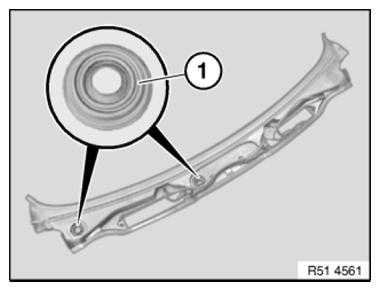

Make sure grommets (1) are correctly seated on wiper pivots.
Grommets (1) for wiper pivots must not be damaged.
Installation:

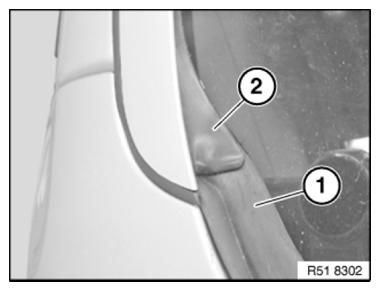

Cowl panel cover (1) must be correctly guided on right and left under windscreen cover (2).
