51 16 202 Removing and installing/replacing front cup holder

Necessary preliminary tasks:

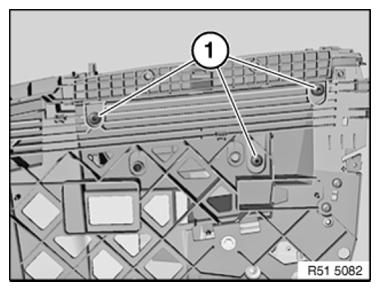

Release screws (1).

Fig 1: Identifying Front Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

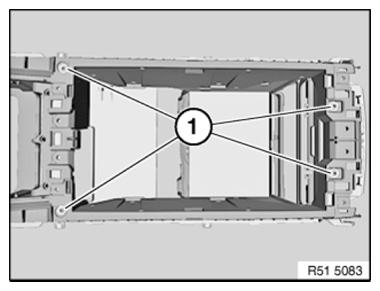

Release screws (1).

Fig 2: Identifying Front Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

E71 only:

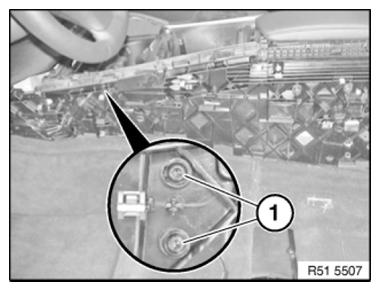

Release left and right screws (1).

Fig 3: Identifying Front Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

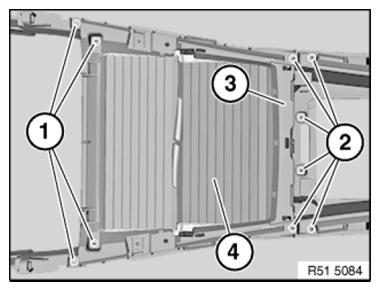

Release screws (1) and (2) and remove center console function carrier (3).

Remove front cup holder (4).

Fig 4: Identifying Front Cup Holder, Centre Console Function Carrier And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
