51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

Special tools required:

• 00 9 317

Starting at bottom, unclip trim strip (1) 00 9 317 from lugs (2) in succession with special tool.

Installation:

Lugs (2) must not be missing or damaged.

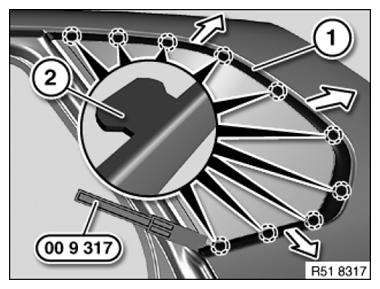

Fig 1: Removing Trim Strip From Lugs Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
