51 21 280 Removing and installing/replacing door stop on left or right front door

Necessary preliminary tasks:

• Close door windows
• Remove sound insulation in front area only  . See 51 48 070 REMOVING AND INSTALLING/REPLACING SOUND INSULATION ON LEFT OR RIGHT REAR DOOR  or 51 48 060 REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN LEFT OR RIGHT FRONT DOOR .

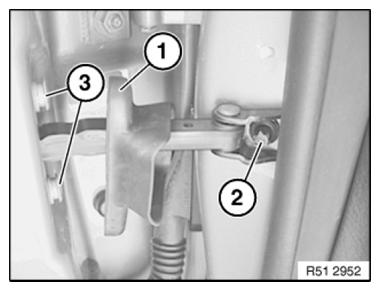

Lever out seal (1).

Unfasten screws (2 and 3).

Installation:

E60/E61 tightening torque:

• (2) 51 21 9AZ
• (3) 51 21 10AZ

E70/E71/E72 Tightening torque:

• (2) 51 21 3AZ
• (3) 51 21 4AZ

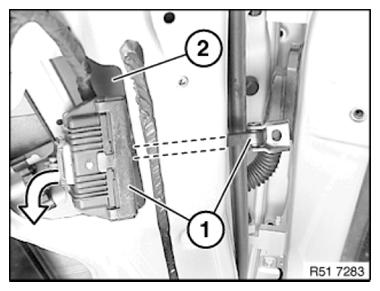

Remove door brake (1) via cutout (2).

Installation:

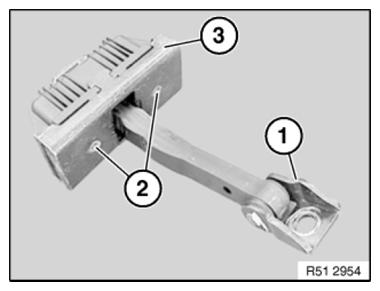

Following parts of door retainer (3) must not be damaged:

1. Hinge
2. Thread
   Fig 3: Identifying Door Retainer, Hinge And Threads

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

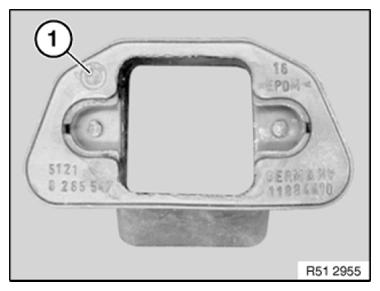

Seal (1) must not be damaged.
