41 5.... Adjust Door

IMPORTANT: Do not damage adjoining body components.

Minor corrections (realignment work) are permitted if the existing range of adjustment is not sufficient.

NOTE: Observe 41 00... BODY GAP DIMENSIONS .

Adjust screwed body components from rear to front.

The following illustrations are schematic diagrams and are to be applied to the relevant vehicle type.

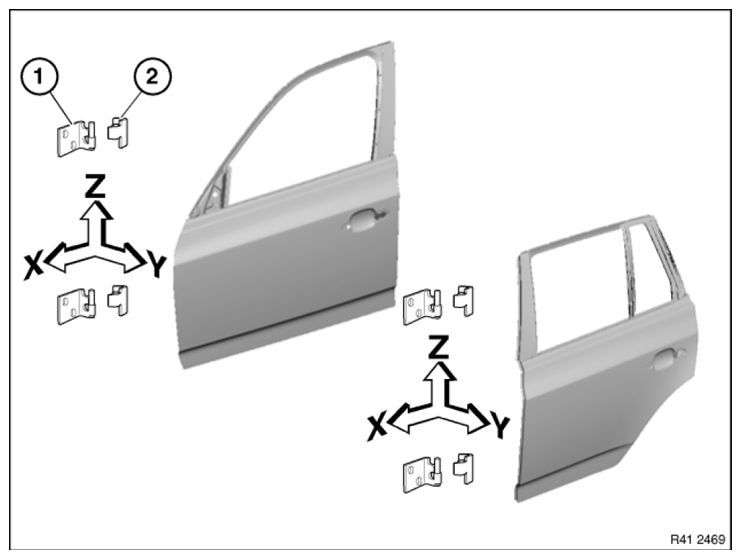

Fig 1: Overview Of Door Panels

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken lock striker, remove if necessary.

Slacken screws (2) on door until door can still just be moved.

Tightening torque 41 51 2AZ .

Tightening torque 41 52 2AZ .

If adjustment range is not sufficient, slacken screws (1) on body.

NOTE: Rear door screw connection accessible from inside only.

Tightening torque 41 51 3AZ .

Tightening torque 41 52 3AZ .

Check that adjoining body components are flush in terms of height and correct if necessary.

NOTE: Height adjustment of door must not be influenced by lock striker.

When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratch marks.

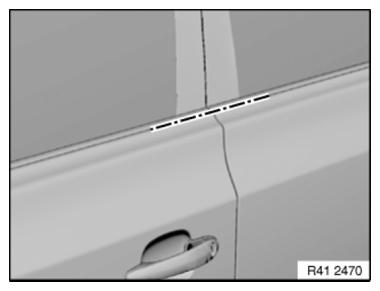

Fig 2: Identifying Scratch Marks On Door

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) until lock striker can still just be moved.

Move lock striker sideways in order to adjust transition between door and rear side panel.

Tightening torque 51 21 2AZ .

NOTE: When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratch marks.

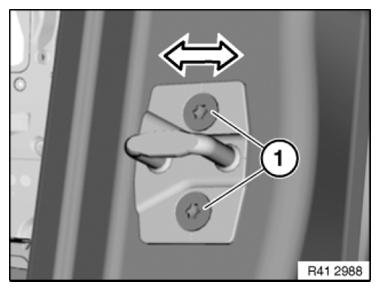

Fig 3: Adjusting Door Striker

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note:

If the hinge is slackened on the body side, the area of the hinge must be sealed in a ushape with sealant (1).

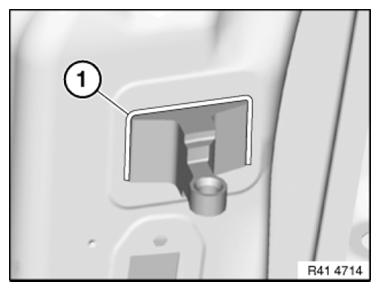

Fig 4: Identifying Sealant Applying Area On Hinge
