52 14 040 Removing and installing/replacing outer cover on left or right front seat

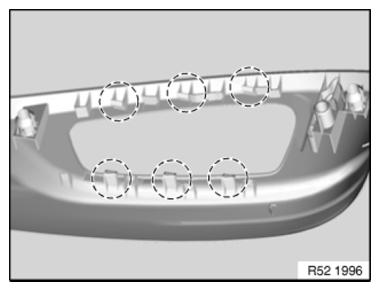

Overview of all attachment points of cover.

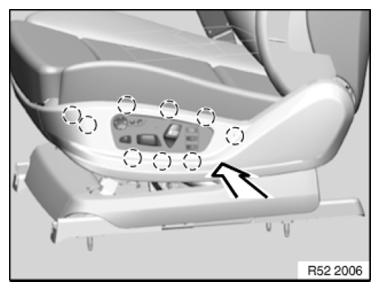

Fig 1: Overview Of Cover Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) from front cover.

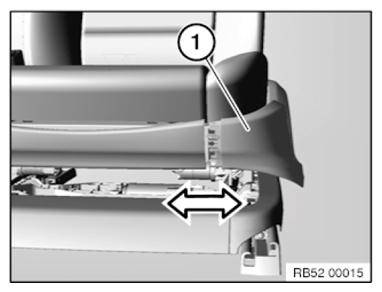

Fig 2: Disconnecting Cover From Front Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover from lower latch mechanisms.

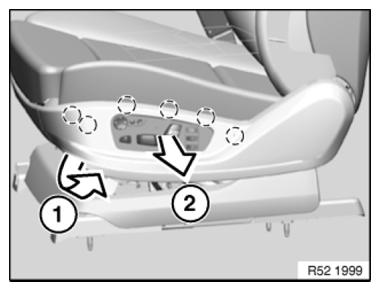

Pull cover toward rear and unclip on sides.

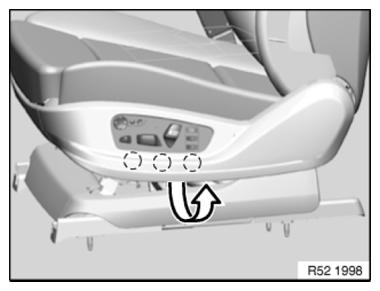

Fig 3: Pulling Lower Latch Mechanisms Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover from front latch mechanisms.
Unclip cover from upper latch mechanisms by twisting upward.

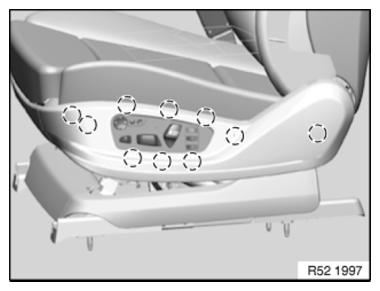

Fig 4: Twisting Upper Latch Mechanisms Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover in direction of arrow.

Installation note:

First insert clip (1) in seat mechanism.

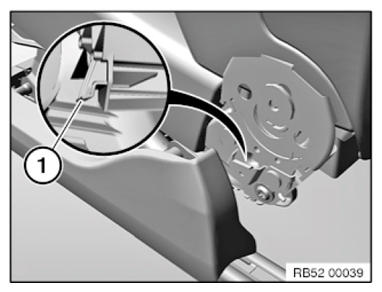

Fig 5: Removing Seat Mechanism Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note overview of last operation:

Apply felt to inside of clip (1).

Clip (1) must be correctly seated in seat mechanism.

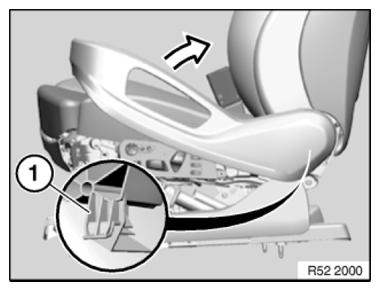

Fig 6: Identifying Seat Mechanism Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips for cover must not be damaged.

If necessary, replace faulty cover.

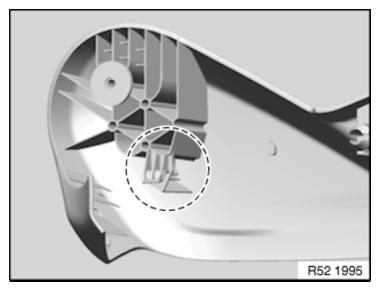

Fig 7: Identifying Cover Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clip for cover must not be damaged.

If necessary, replace faulty cover.

Fig 8: Identifying Faulty Cover Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert felt-covered clip into rear seat mechanism.

Position cover straight and insert in front cover trim.

Clip in cover from rear to front.

Clip cover in front cover trim.

Fig 9: Inserting Felt-Covered Clip Into Rear Seat Mechanism
