51 24 105 Removing and installing/replacing rear lid lock

Necessary preliminary work:

• Remove TRIM FOR REAR LID .

Release screws (1).

Tightening torque 51 24 1AZ .

Feed out lock (2), disconnect plug connection and remove lock (2).

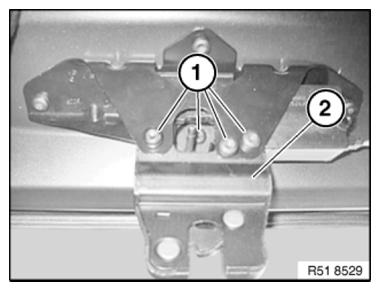

Fig 1: Identifying Rear Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
