51 34... Removing and installing/replacing trim for window guide of left or right rear door

Necessary preliminary tasks:

• Open rear side window
• Remove inner WINDOW CAVITY SEAL .
• Release COVER ON DOOR WINDOW FRAME .

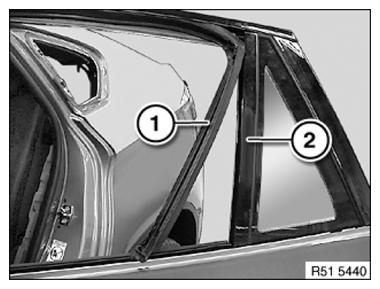

Pull out rubber guide (1) at trim (2).

Installation:

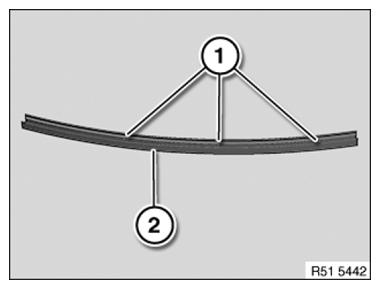

Moisten rubber guide (1) with water before fitting.

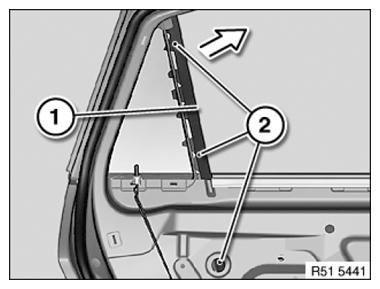

Unfasten screws (2).

Remove trim (1) for window guide in direction of arrow.

Installation:

Threads (1) of trim (2) must not be damaged.
