51 12 825 Removing and installing/replacing guide for rear center bumper

Necessary preliminary tasks:

Release nuts (1) and (2).

Disconnect plug connection for comfort aerial/antenna (3).

Feed out holder (4) towards top.

Installation:

Tightening torque 51 12 3AZ .

Fig 1: Identifying Aerial/Antenna, Holder And Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides in area (A) of bracket (1) must not be damaged.

Replacement:

Remove comfort aerial/antenna (2).

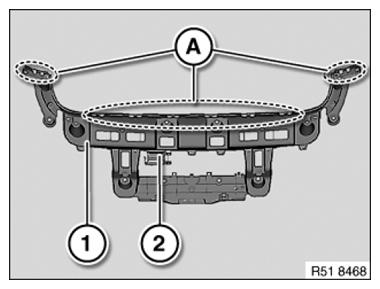

Fig 2: Identifying Aerial/Antenna, Bracket And Guiding Area

Courtesy of BMW OF NORTH AMERICA, INC.
