61 31 334 Removing and installing/replacing grip trim for gear selector switch
Special tools required:
- 64 1 030 .

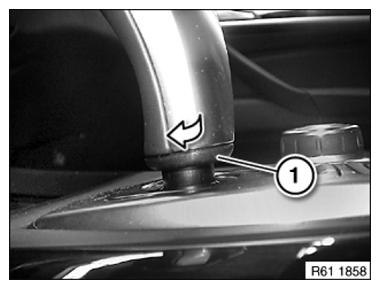

Turn circlip (1) in direction of arrow and remove.
Installation:
Make sure circlip (1) is correctly seated.

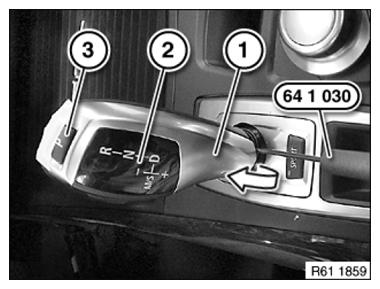

Insert special tool 64 1 030 into trim (1) from below and carefully pull trim (1) away in the direction of the arrow.
Remove symbol plate (2).
Installation:
To facilitate fitting, secure pushbutton (3) with adhesive tape on trim (1).
