51 16... Replacing cable connection for right or left sun visor

NOTE: If repairing, repair kit is required (BMW Parts Department 7 265 077).

Necessary preliminary work:

Using a suitable tool, cut through retaining ring (1) and washer (2). Pull off cable connection (3).

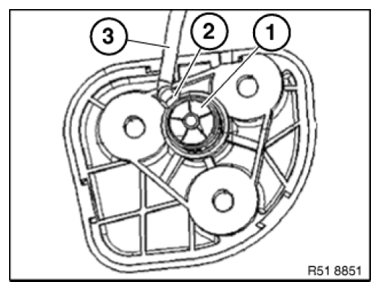

Fig 1: Identifying Sun Visor Retaining Ring, Washer And Cable Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Place cable terminal (1) on guide pin (2) and secure with clip (3). When doing so, press down clip (3) as far as possible.

IMPORTANT: Cable terminal (1) must be capable of twisting slightly on guide pin (2).

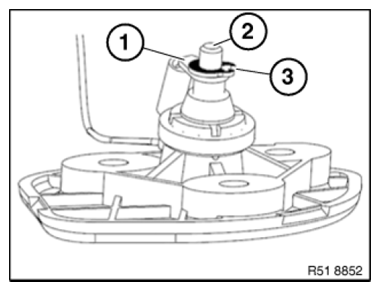

Fig 2: Identifying Cable Terminal, Guide Pin And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
