51 16... Removing and installing/replacing front trim on rear console

Special tools required:

• 00 9 323 .

Necessary preliminary tasks:

• Remove DECORATIVE TRIM FROM REAR CONSOLE  on left and right.

Insert special tool 00 9 323 as illustrated and unclamp trim (1) from carrier (2).

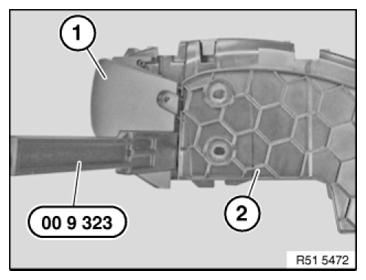

Fig 1: Unclamping Trim From Carrier Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1), guide (2) and tabs (3) on trim (4) must not be damaged.

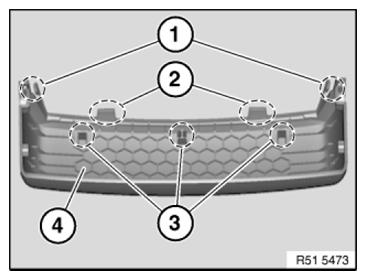

Fig 2: Identifying Catches, Guide, Tabs And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
