51 16 378 Removing and installing/renewing hinge for upper glovebox lid

Necessary preliminary tasks:

Close glovebox lid.

Release tab washer (1) and remove pin (2).

Open glovebox lid.

Disconnect spring (3).

Release screw (4).

Feed out damping element (5).

Installation:

Replace tab washer (1) and pin (2).

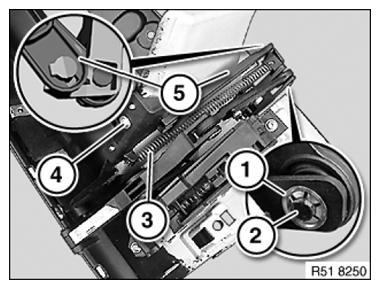

Fig 1: Identifying Glovebox Lid Spring, Tab Washer, Pin, Screw And Damping Element

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Take off holder (2).

Feed out hinge (3).

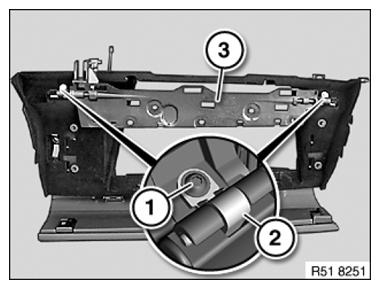

Fig 2: Identifying Glovebox Lid Hinge, Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Spring (1) must not be damaged.

If necessary, pull out shaft (2) and replace faulty bushings (4).

Markings (3) on bushing (4) and hinge must line up.

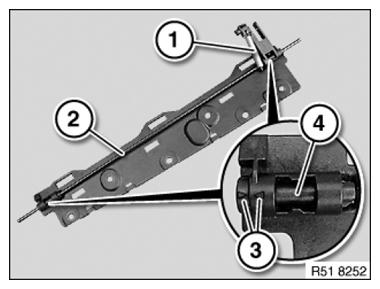

Fig 3: Identifying Spring, Shaft And Bushing With Marking

Courtesy of BMW OF NORTH AMERICA, INC.
