51 16 375 Removing and installing/replacing kinematic unit for glovebox lid

Necessary preliminary tasks:

Remove LOCK FOR GLOVEBOX LID on left.

NOTE: Kinematic unit for glovebox lid consists of reversing lever and damping element with spring.

Close glovebox lid.

E70/71 up to 09/09 only

Release tab washer (1) and remove pin (2).

Release pin (3).

Remove reversing lever (4).

Installation:

Replace tab washer (1) and pin (2).

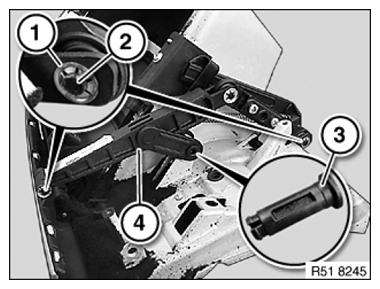

Fig 1: Identifying Glovebox Lid Tab Washer, Pin And Reversing Lever

G08559588

Courtesy of BMW OF NORTH AMERICA, INC.

from 09/09

Release tab washer (1) and remove pin (2).

Release pin (3).

Remove reversing lever (4).

Installation:

Replace tab washer (1) and pin (2).

Contact lug (5) for microswitch must not be damaged or missing.

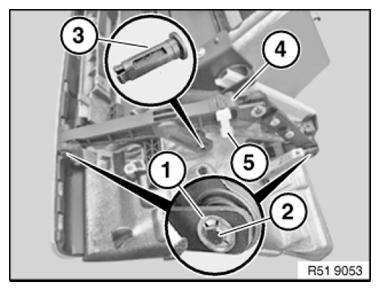

Fig 2: Identifying Glovebox Lid Tab Washer, Pin, Reversing Lever And Microswitch Lug

G08559589

Courtesy of BMW OF NORTH AMERICA, INC.

Open glovebox lid.

Disconnect spring (1).

Release screw (2).

Feed damping element (3) out of holder (4).

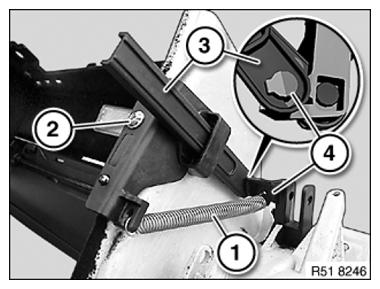

Fig 3: Identifying Glovebox Lid Spring, Damping Elements, Holders And Screw

G08559590

Courtesy of BMW OF NORTH AMERICA, INC.
