51 16... Removing and installing/replacing upper trim on rear console

Necessary preliminary tasks:

Remove REAR SEATS .

Release screws (1) under rubber insert.

Release screws (2 and 3) on left and right sides.

Disconnect plug connection (4).

Lift out center console (5).

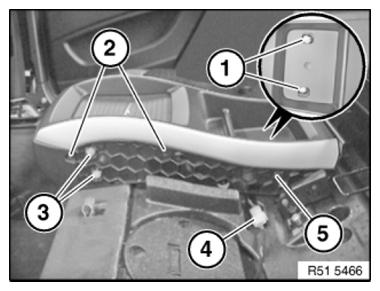

Fig 1: Identifying Centre Console, Plug Connection And Mounting Screws

G08559644

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Feed cup holder from below out of frame (2) in direction of arrow first at point A, then at point B.

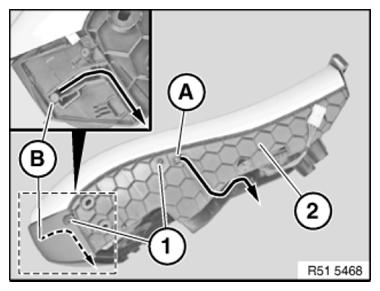

Fig 2: Identifying Frame And Mounting Screws

G08559645

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on frame (2).

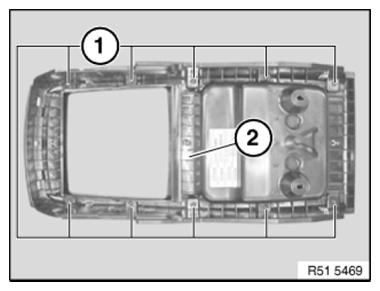

Fig 3: Identifying Rear Console Trim Frame And Mounting Screws

G08559646

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim (2) at retainers (3) from frame (1).

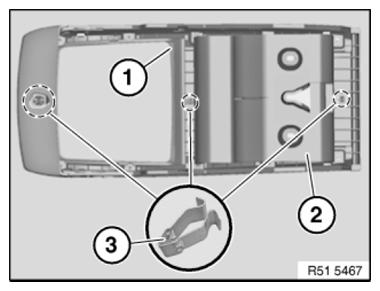

Fig 4: Identifying Rear Console Trim, Frame And Retainers

G08559647

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on trim (2) must not be damaged.

Make sure retainers (1) is correctly seated on lugs.

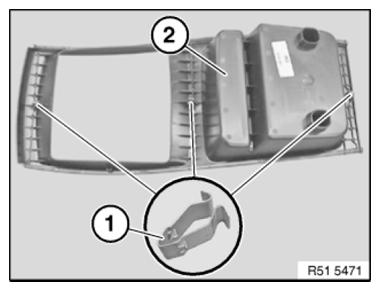

Fig 5: Identifying Rear Console Trim And Retainers
