51 23 100 Removing and installing/renewing right bonnet lock

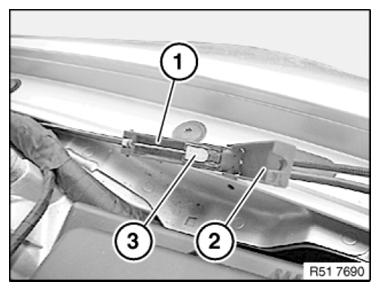

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

Fig 1: Identifying Hood/Bonnet Lock Coupling, Cover And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

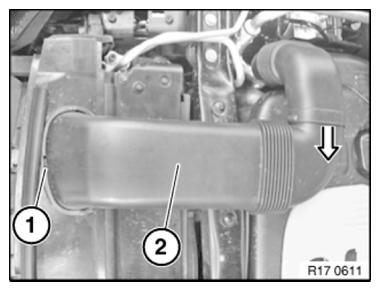

Lever out expander rivets on transverse reinforcement. Press lock (1) and raise intake duct (2). Detach intake duct (2) from air filter housing in direction of arrow and remove.

Fig 2: Removing Intake Duct From Air Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

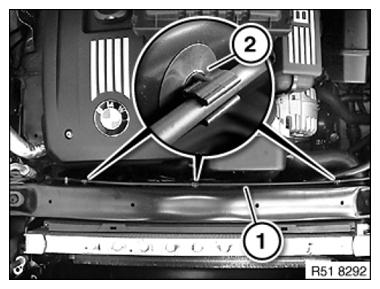

Unclip Bowden cable (1) from holder (2) on transverse reinforcement.

Fig 3: Identifying Bowden Cable And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

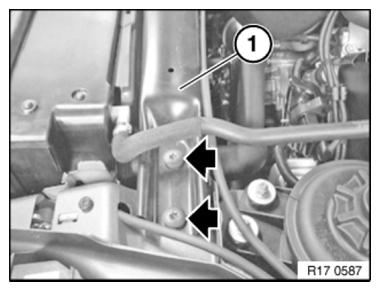

Release screws on left and right sides of transverse reinforcement (1). Tightening torque 51 71 4AZ . Remove transverse reinforcement (1).

Fig 4: Locating Transverse Reinforcement Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows A/C lines and module carrier cover removed for purposes of clarity.

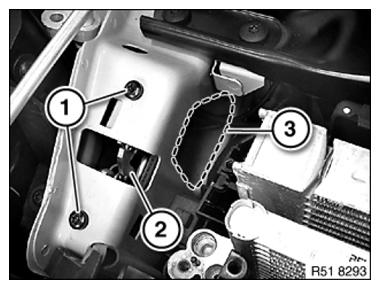

Release screws (1).

Tightening torque 51 23 2AZ .

Feed out hood/bonnet lock (2) through opening (3).

Fig 5: Identifying Hood/Bonnet Lock, Opening And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

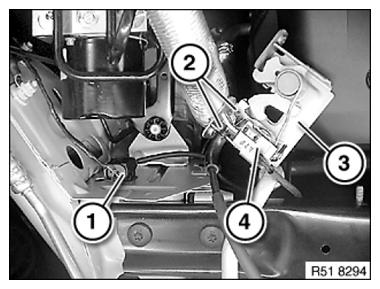

Disconnect plug connection (1), unclip plug and cable from body.

Disengage Bowden cable (1) in direction of arrow from hood/bonnet lock (3).

Replacement:

Remove SWITCH (4) .

Fig 6: Identifying Hood/Bonnet Lock, Plug Connection, Bowden Cable And Switch

Courtesy of BMW OF NORTH AMERICA, INC.
