51 32 211 Replacing front left or right rubber guide for left or right door window

Necessary preliminary tasks:

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Pull rubber guide (1) completely out of front door.

Installation:

Moisten rubber guide (1) prior to fitting with APPROVED ANTI-FRICTION AGENT .

Insert rubber guide at front/bottom correctly into window guide rail.

Acoustic insulation under rubber guide (1) must not be damaged or missing.

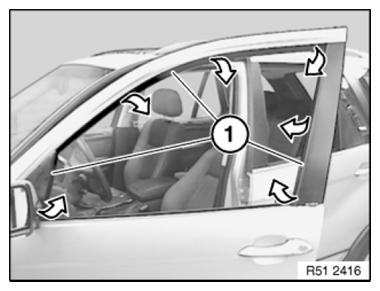

Fig 1: Pulling Out Rubber Guide From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber guide (1) must not be damaged in corners (2).

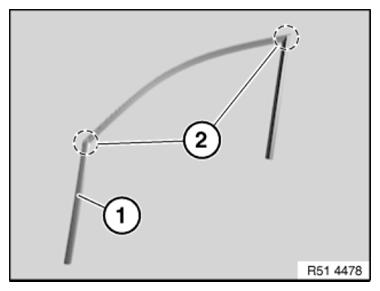

Fig 2: Identifying Rubber Guide With Corners

Courtesy of BMW OF NORTH AMERICA, INC.
