51 14 110 Removing and installing/replacing rear model designation

IMPORTANT: The "INSTRUCTIONS FOR NUMBER/LETTER COMBINATION CEMENTING " serve as the basis for these repair instructions and must be followed without fail.

Mark dimensions (A and B) on rear lid.

=20 mm;
=146 mm
Stick on model designation using markings.

NOTE: Measurement "C" is for information purposes only, as it is determined by carrier film.
C= 9.2 mm

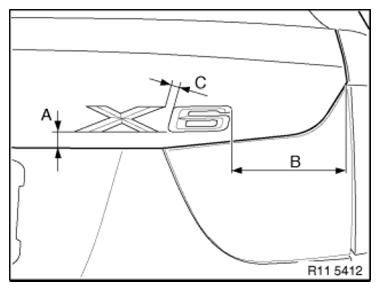

Fig 1: Identifying Model Designation Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.
