51 14 011 Replacing rear BMW badge

Special tools required:

00 9 323

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

The BMW badge must be replaced after it is removed.

Removing badge:

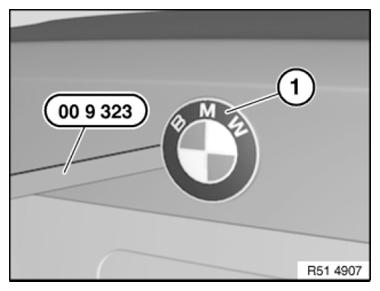

Heat BMW badge (1) with hot air blower and carefully lever out with special tool 00 9 323 .

Fig 1: Removing BMW Logo Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Fitting badge:

Installation note:

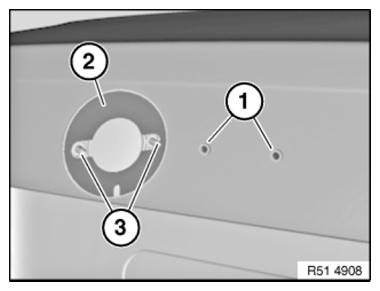

Grommets (1) must not be damaged.

Pull liner* off adhesive tape (2), position badge over guide pins (3) and press down firmly.

* Liner is the protective film on a new plate.

Fig 2: Removing BMW Badge With Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.
