Check connecting-rod bearing clearance

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage Type PG 1) to the oil-free crankshaft.

Fit bearing caps so that pair numbers match up.

Fig 1: Locating Connecting-Rod Bearing Cap Mark

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not distort connecting rods or crankshaft.

Use conrod bolts to check conrod bearing clearance.

Conrod bolts with special tool 00 9 120.

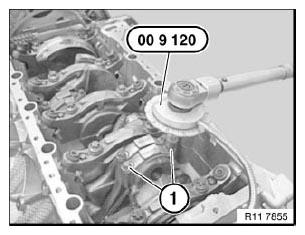

Fig 2: Tightening Connecting-Rod Bearing Cap Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing cap and read off bearing play at width of flattened plastic thread with assistance of measurement scale.

Conrod bearing clearance .

Fig 3: Measuring Conrod Bearing Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Secure conrod bolts with special tool 00 9 120.

Fig 4: Tightening Connecting-Rod Bearing Cap Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
