61 62 060 Removing and installing/replacing rear window wiper motor
Necessary preliminary tasks
- Remove WIPER ARM FOR REAR WINDOW WIPER
- Remove TRIM FOR REAR LID AT BOTTOM .

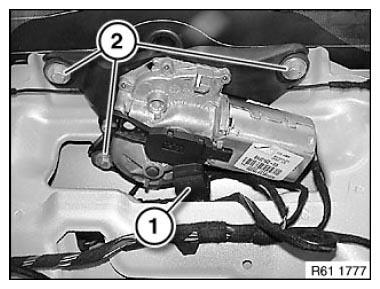

Disconnect plug connector (1).
Release bolts (2).
Tightening torque 61 62 1AZ .
Pull rear window wiper motor out of rear window grommet.
Installation:
Check wiper shaft grommet for signs of damage.
