51 71... Removing and installing/replacing bottom left or right steering box cover

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Release bolts (1) for assembly underside protection at front.

Release screws (2) and expanding rivets (4).

Tightening torque 51 75 1AZ .

Remove cover (3).

Installation note:

Replace damaged expanding rivets.

Make sure cover is correctly positioned.

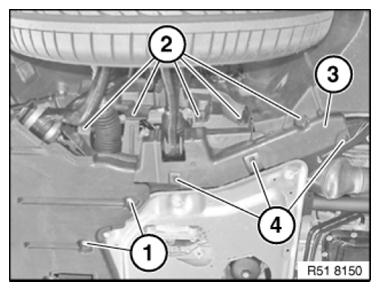

Fig 1: Identifying Expanding Rivets, Cover, Screws And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure all covers in wheel arch are correctly seated in relation to each other:

Rear cover (1) overlaps front cover (2)
Cover (4) overlaps rear cover (1)
Cover (3) overlaps covers (2, 4) and rear cover (1) in area (A)

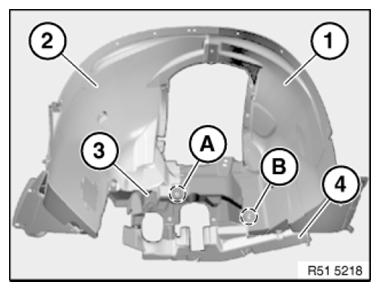

Fig 2: Identifying Rear Cover And Front Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Left side only:
