Starting the dismantling

NOTE: Spools can only be rotated in one direction.
  • Make sure the wire is always situated in the guide channel of the suction cup lifter (1)
  • Fit reversible ratchet onto top spool shaft (2) and tighten wire

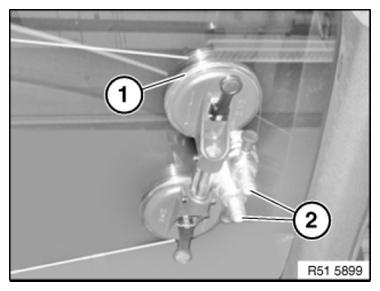

    Fig 1: Removing Window Glass Using Suction Cup Lifter
    G08529177Courtesy of BMW OF NORTH AMERICA, INC.
  • Start by cutting lower adhesive bead
  • At the end of the cutting process, the two wire loops join up at the lifting winch (1)
  • Remove "Roll Out 2000"
  • Remove window glass.
