51 14... Instructions for attaching number/letter designation combination: Removing

Coat nylon string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1) from rear lid (2).

Remove remainder of adhesive layer with adhesive remover.

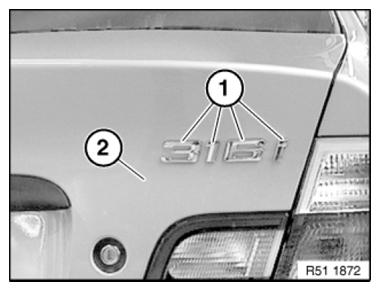

Fig 1: Identifying Model Designation And Rear Lid
G08528881Courtesy of BMW OF NORTH AMERICA, INC.
