13 53 180 Replacing pressure line (between high-pressure pump and pressure accumulator) (M57T2)
Special tools required:
Necessary preliminary tasks:
- LAYOUT OF COMMON RAIL SYSTEM
- Switch off ignition
- Remove intake air manifold. See 11 61 050 REMOVING AND INSTALLING INTAKE PLENUM (M57T2/SCR) .
Cover intake ducts
IMPORTANT:
It is essential to adhere to conditions of absolute cleanliness when working on the fuel system.
- Do not allow any dirt particles or foreign bodies to get into the system
- Use only fluff-free cloths
- Remove all traces of dirt before removing pipes or individual components
- Seal all fuel system openings with protective caps
Recycling:
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

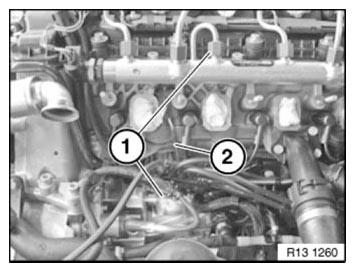

Release union nuts (1) on pressure line with special tool 13 5 020 .
Tightening torque: 13 53 1AZ .
Disconnect pressure line (2).
Installation:
Observe installation position of rubber mount.
