13 90 500 Replacing tank venting valve (N63)

Necessary preliminary tasks:

• Check stored fault message.
• Switch off ignition.
• Remove FAN COWL .

Unlock plug (1) and remove.

Unlock hose (2) and detach.

Unlock hose (3) further below on intake manifold and detach.

Detach tank vent valve (4) from holder and remove.

Fig 1: Identifying Tank Vent Valve And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

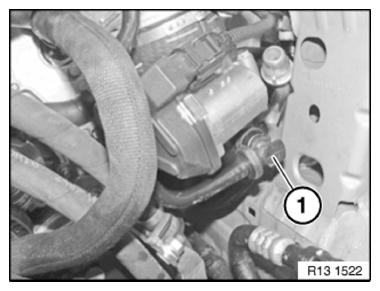

Unlock hose (1) on intake manifold and detach.

Fig 2: Identifying Intake Manifold Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Now clear the fault memory.
