51 16 342 Removing and installing/replacing lock barrel for front passenger airbag deactivation

Individual parts, switch for front passenger airbag deactivation

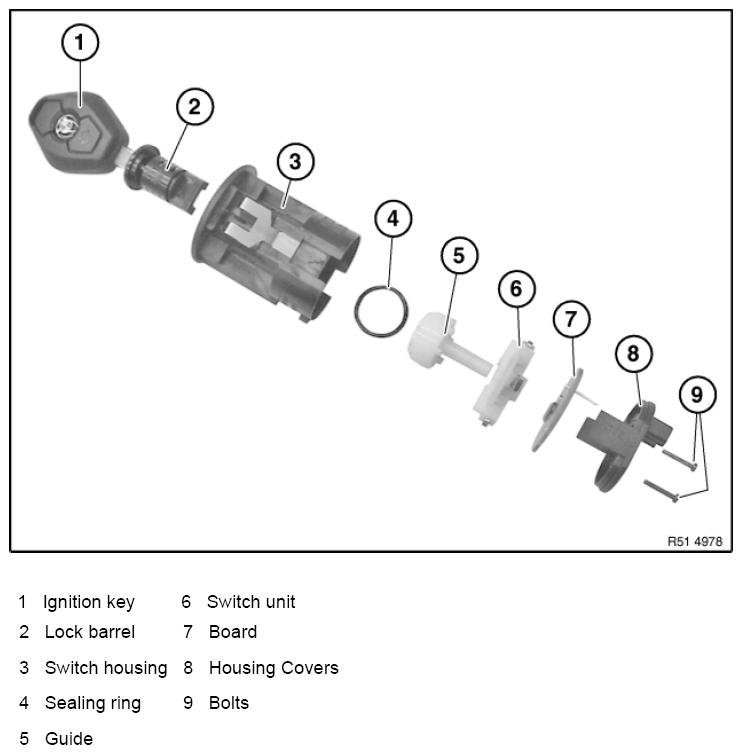

Fig 1: Overview Of Components For Lock Barrel Of Front Passenger Airbag Deactivation Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Release screws (1).

Remove housing cover (2) and PCB (3) underneath.

Fig 2: Identifying PCB, Housing Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) in upward direction.

Installation note:

Switch unit (1) can only be installed in one position.

PCB (4) can be inserted turned through 180°.

Position of magnet sensor (3) of PCB (4) must match up with permanent magnet (2) of switch unit (1).

Fig 3: Identifying Permanent Magnet Of Switch Unit And Magnet Sensor Of PCB

Courtesy of BMW OF NORTH AMERICA, INC.

Remove guide (1) in upward direction.

Installation note:

Guide (1) can only be installed in one position.

Fit gasket (2) on guide (1) and insert in switch housing.

Fig 4: Identifying Guide And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ignition key must be inserted in lock barrel, otherwise this will be destroyed when removed.

Insert ignition key in lock barrel (2).

Carefully release catches (1) in outward direction and press out lock barrel (2) with ignition key.

Installation note:

Lock barrel (2) can only be inserted in "ON" or "OFF" switch position.

Lock barrel

Fig 5: Identifying Catches And Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
