51 16 165 Removing and installing/replacing complete center console

Necessary preliminary work:

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

NOTE: Driver's seat removed for purposes of clarity.

Release screws (1) and (2) on left and right.

Removing torque 51 16 4AZ .

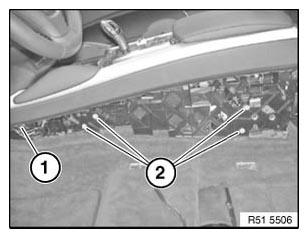

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and pull center console (2) approx. 50 mm towards rear.

Tightening torque 51 16 4AZ .

NOTE: The operation Releasing center console ends here.

Version with rear compartment monitor:

Disconnect plug connection (3).

Fig 2: Identifying Center Console, Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Feed air duct (1) out of center console (3).

Release cable clip for cable (2) from center console (3).

Installation note:

Make sure air duct (1) is correctly seated on center console (3).

Fig 3: Identifying Cable Clip, Air Duct And Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 4: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Version with eject box:

Expose plug connections for EJECT BOX wiring harness and disconnect.

Pull center console (1) towards rear/top, feed out wiring harnesses (2) and (3), and remove center console (1).

Fig 5: Identifying Center Console And Wiring Harnesses

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
